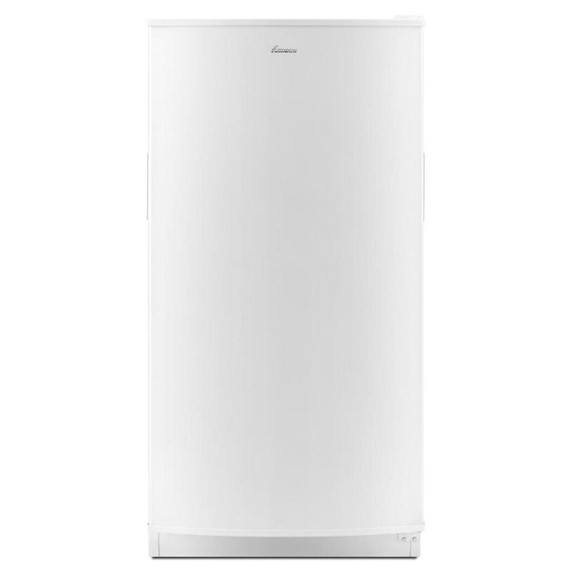

Amana® 16 cu. ft. Amana® Upright Freezer with Revolutionary Insulation AZF33X16DW

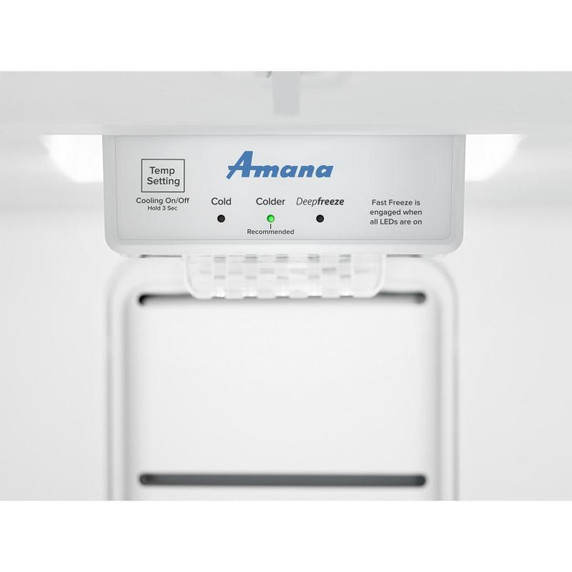

Fast Freeze OptionThe Fast Freeze Option helps you chill large amounts of food fast at just the push of a button by driving freezer temps 10 degrees colder than the lowest setting.

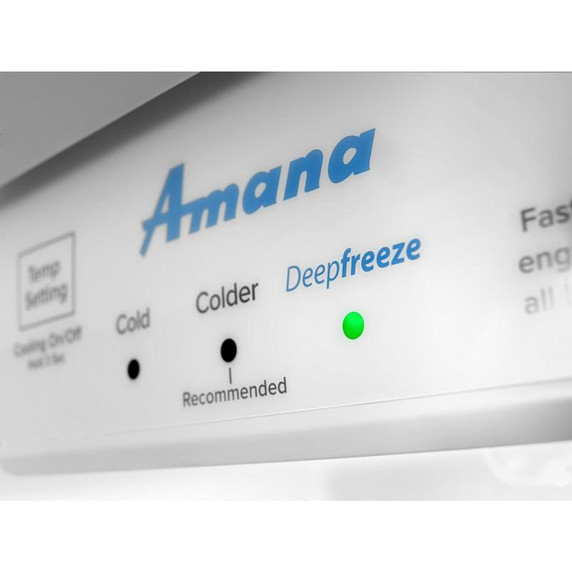

DeepFreeze® TechnologyDeepFreeze® Technology cools down to an ice-cold negative eight degrees to help keep this week's frozen dinners ready for next month's movie marathon.
Energy-Saving InsulationLower the global warming potential of your freezer by 99.9% with Energy-Saving Insulation.
Free-O-Frost™ SystemThe Free-O-Frost™ System helps prevent ice buildup, so you don't have to worry about setting aside time to defrost the freezer.
BasketsUse these nifty Baskets to store small items like those packs of sweet potato fries or even a chocolate pie.

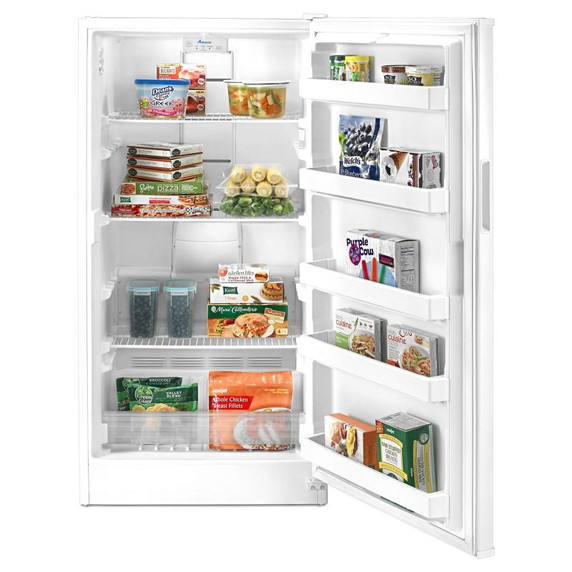

CapacityWhen you buy food in bulk, our freezers provide the storage capacity you need for your next shopping spree.

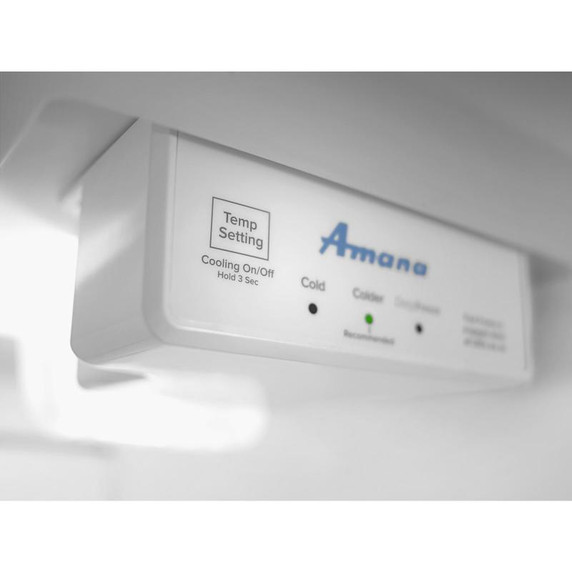

Controls
Control TypeElectronic
Door Ajar Open AlarmNo
Control LocationInterior
Defrost TypeAutomatic Defrost
Temperature Monitor AlarmNo
Temperature Range15.8 F to -15.3 F (-9.3 C to -26.3C)
Electrical
Volts115

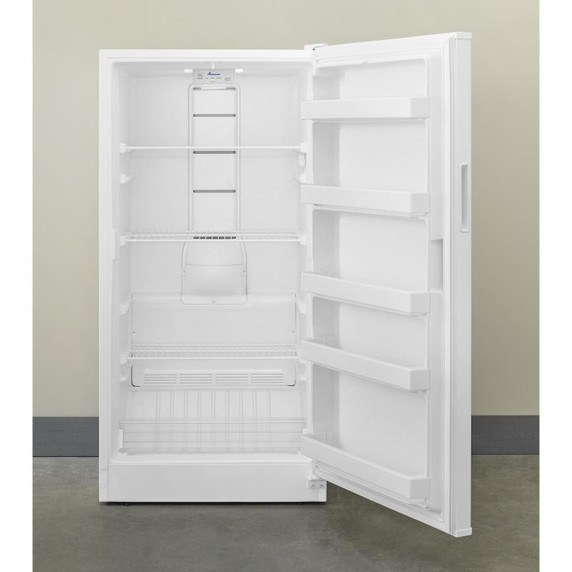

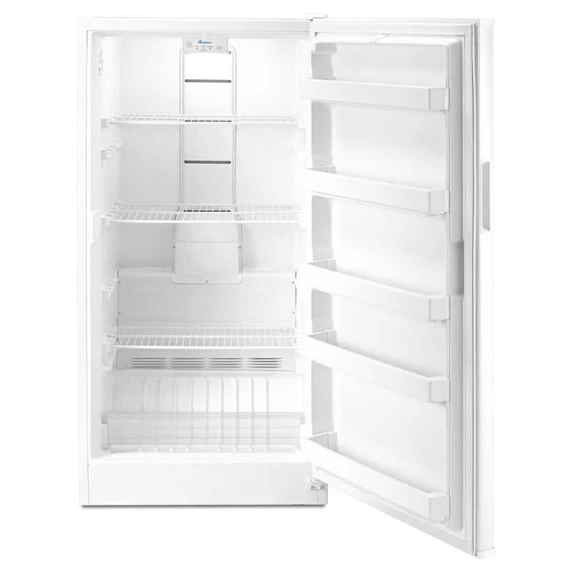

Freezer Compartment
LightYes
Door Bins5 Fixed Full-Width
Freezer Number Of Shelves3 Adjustable Full-Width Wire
Shelves3 Adjustable Full-Width Wire
Specifications
Country Of OriginUSA
Extended Service Plan ParentEW05IW1Y, EW05IW2Y, EW05IW4Y
Product To Product PairsACR4303MFW, AGR6603SFW
Features
Ice Maker CompatibleNo
Fast Freeze SettingYes
Freezer On Indicator LightNo
Certifications
ULYes
Energy Star QualifiedNo
Exterior
Door OpeningRight Swing
Hidden HingeYes
Door StyleContour
Handle MaterialPlastic
Reversible DoorYes
Door FinishTextured
Defrost DrainNo
Freezer Door LockNo
Freezer Handle TypePocket Handle
Description
Freezer TypeUpright
Carton Depth31.55"
Carton Height63.25"
Carton Width31.75"
Depth Closed Excluding Handles29.13"
Depth Closed Including Handles29.13"
Gross Weight160.0 lbs.
Height60.75"
Net Weight148.0 lbs.
Width30.25"
Height To Top Of Cabinet60.25"
Height To Top Of Door Hinge60.75"
Capacity FT3 (cubic feet)15.68
