Amana

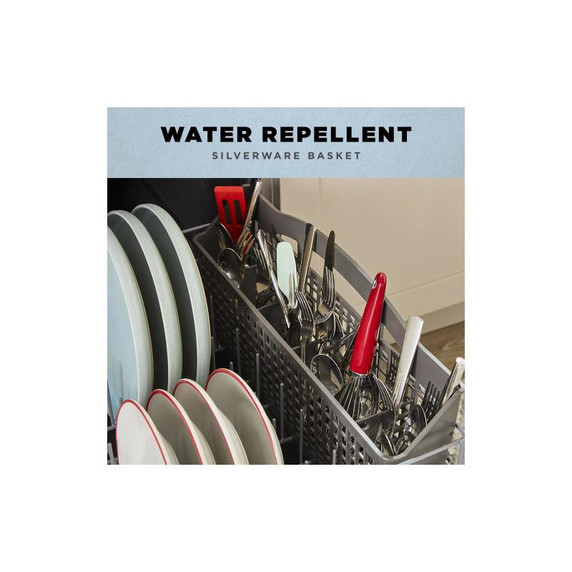

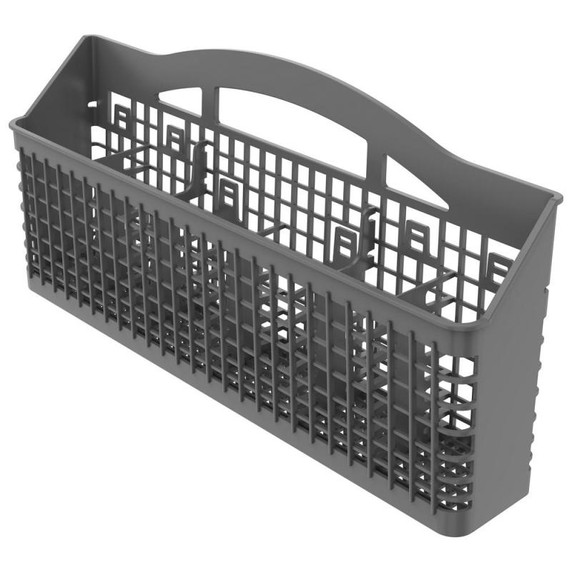

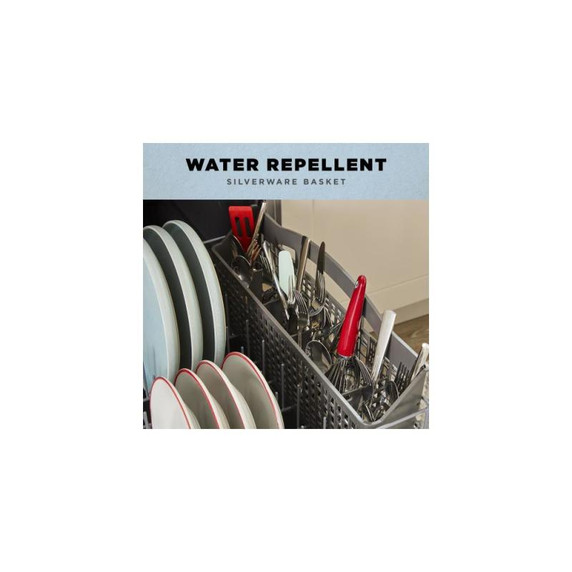

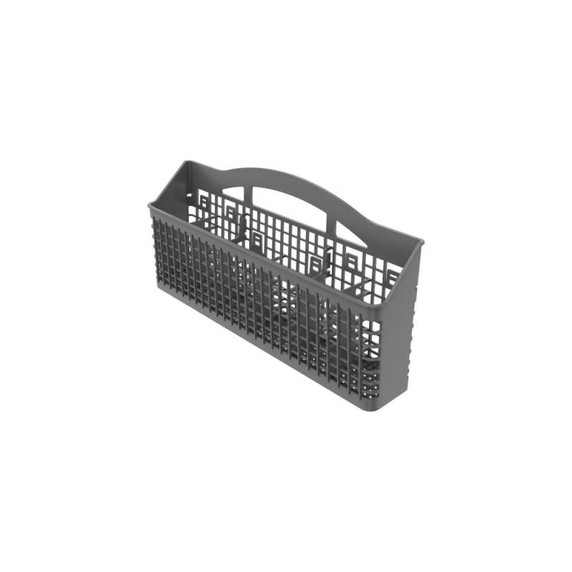

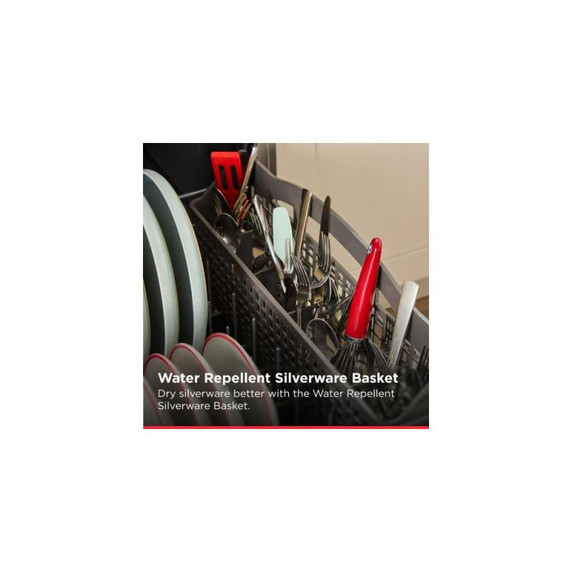

Water Repellent Silverware BasketDitch drip drying with a water repellent silverware basket that dries better.

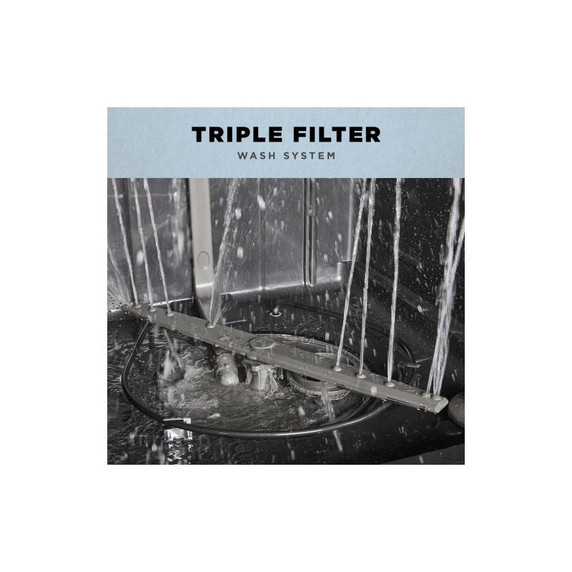

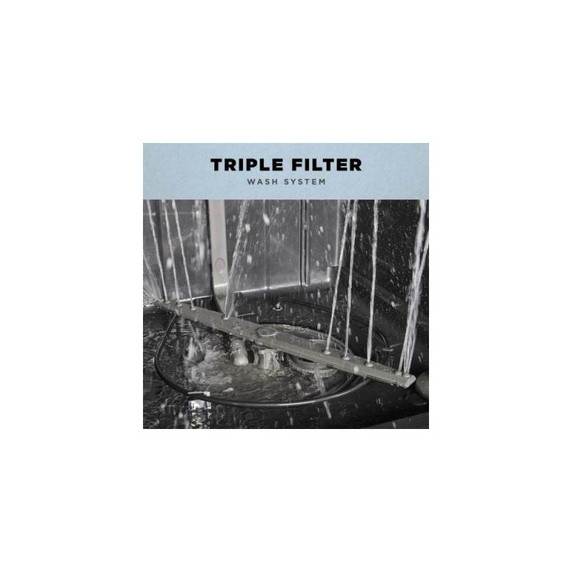

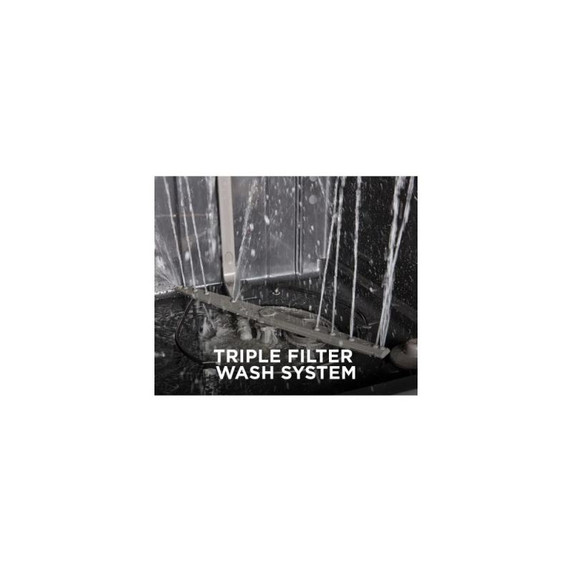

Triple Filter Wash SystemThe Triple Filter Wash System helps catch food soils during cycles so you can skip the pre-rinse song and dance.
ENERGY STAR® CertifiedThis Amana® dishwasher is ENERGY STAR® Certified to help you conserve energy and pay for less utilities.

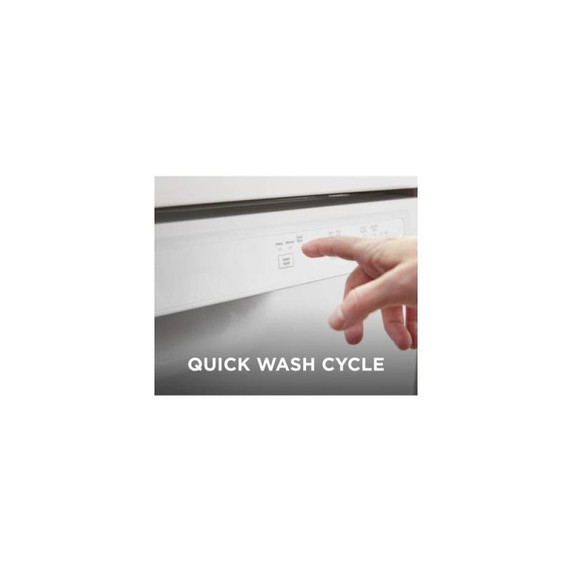

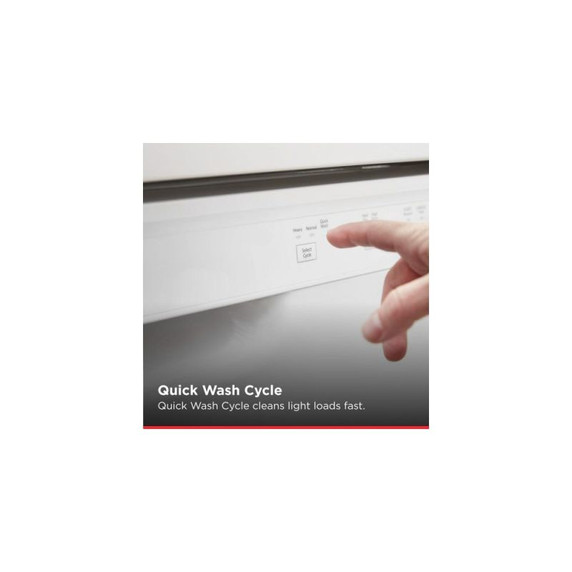

Quick Wash CycleThere’s no need to get out the “back-up” dishes when the Quick Wash Cycle can clean light loads fast.

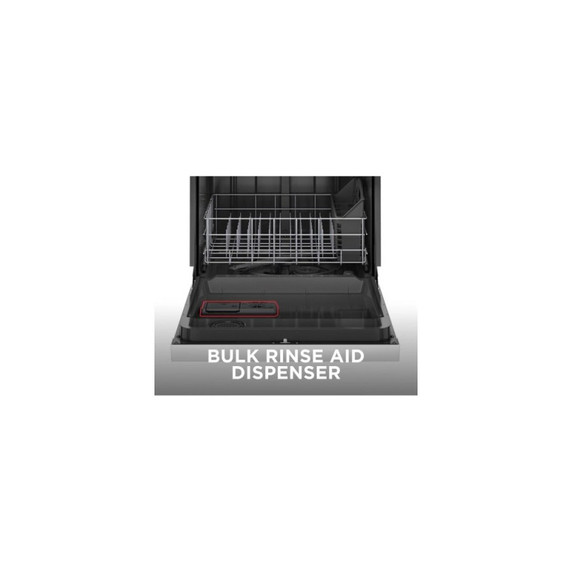

Bulk Rinse Aid DispenserJust fill the Bulk Rinse Aid Dispenser with your drying agent and let it help improve the drying process for an average of 115 cycles.
*When your machine is set to level 1 dosing

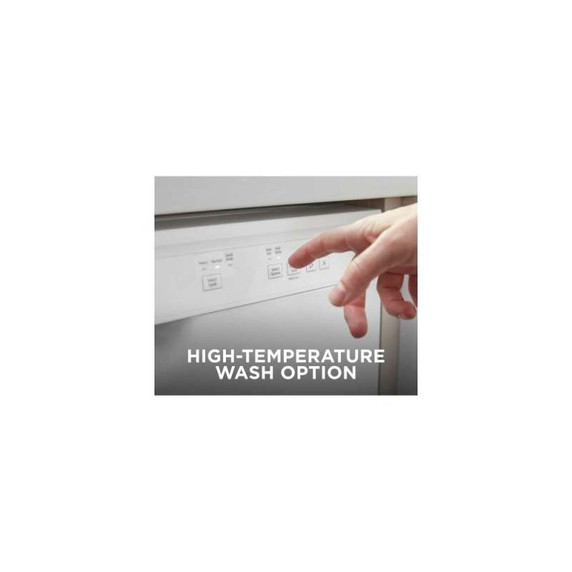

High-Temperature Wash OptionA heater boosts the water temperature during the wash cycle with the High-Temperature Wash Option. Plus, an extra rinse is added to help get those dishes clean.

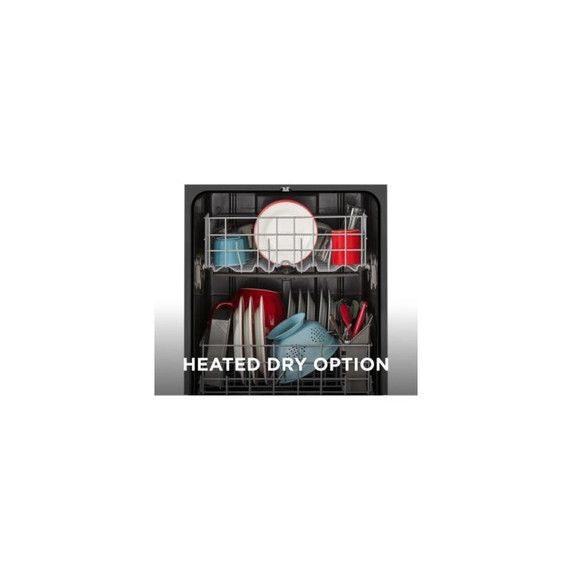

Heated Dry OptionThe Heated Dry Option uses an internal heater to remove excess moisture, giving you a more complete dry.

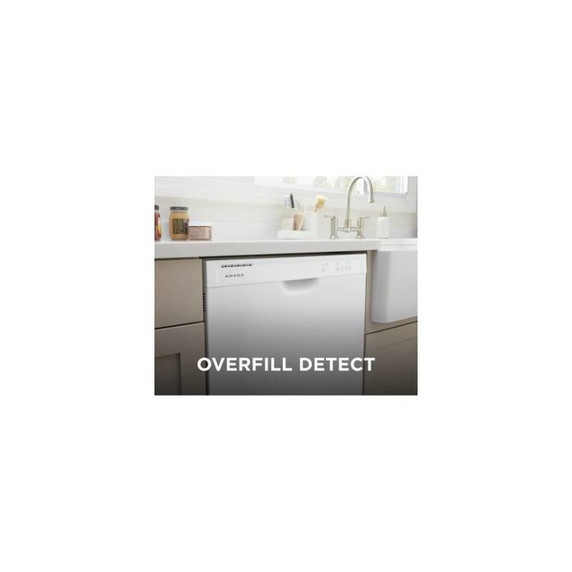

Overfill DetectHelp stop messy situations with Overfill Detect. A float sensor in the unit will detect if too much water is in the tub and cut the power to the inlet fill valve.

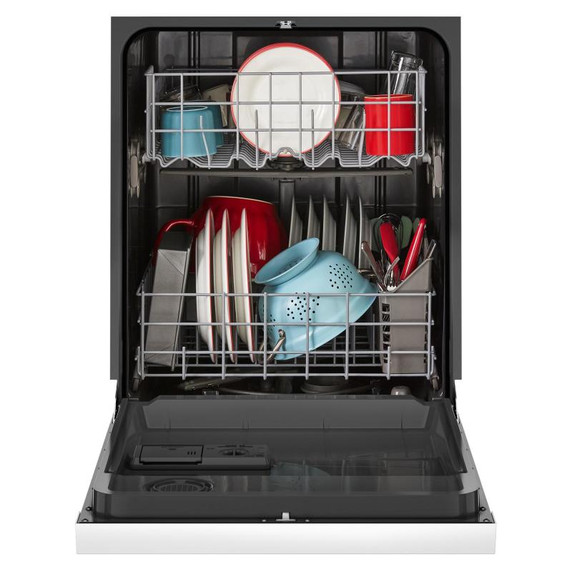

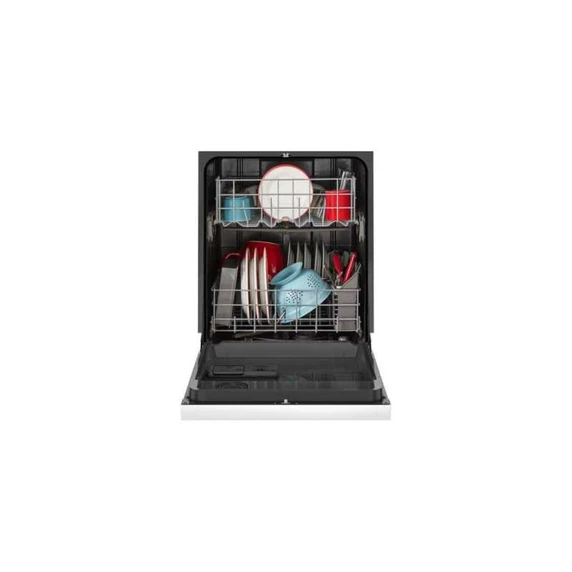

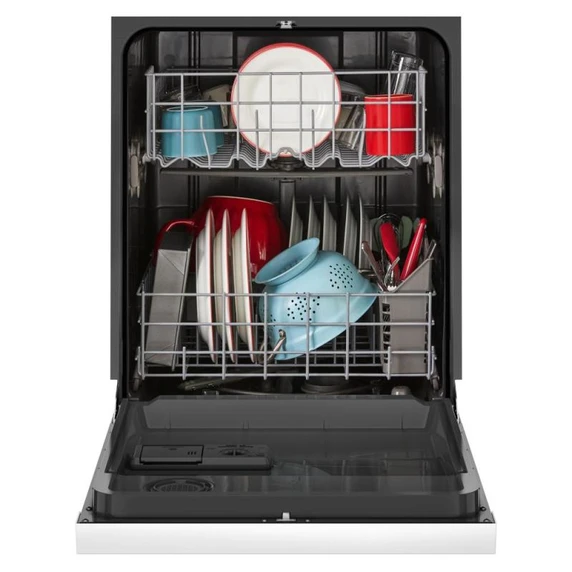

12-Place Setting CapacityWhen it’s your turn to do the dishes, a 12-Place Setting Capacity gives you the space you need.

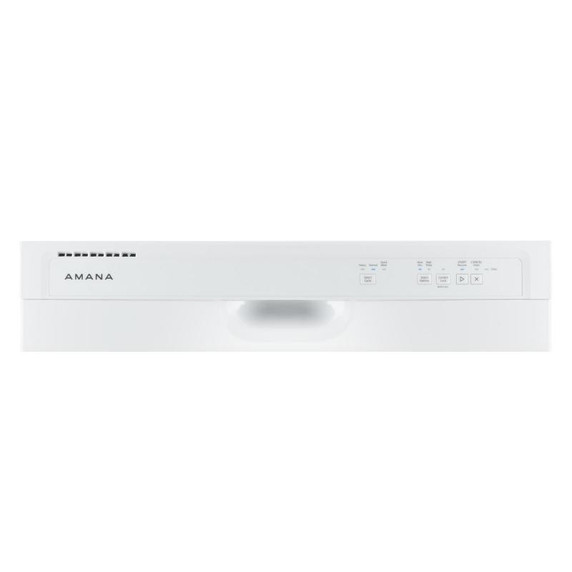

Slim Control Console with Pocket DoorBring clean lines to the kitchen with a slim console that's easy-to-clean and offers quick access to settings without adding extra bulk.
59 dBAThis Amana® Dishwasher offers a 59 dBA rating so you can clearly hear tonight’s game above the sound of your dishwasher.
Vented Dry
Vented Dry uses an open vent to release humid air to aid in the drying process while the heating element helps evaporate water off of the dishes.
Certifications
ADA CompliantNo
Cee TierNot Rated
Energy Star QualifiedYes
NSF CertifiedNo
ULYes
Controls
Automatic Temperature ControlsYes
Control LocationFront
Control TypeElectronic
Last Cycle RecallYes
Specifications
Country Of OriginUSA
Quick WashYes
Required AccessoriesW10278635RP
Extended Service Plan Parent
Product To Product Pairs
Cycles and Options
Dishwasher Cycle SelectionsHeavy; Normal; Quick Wash
Cycles
Number Of Wash Cycles3
Details
Drying System TypeHeating Element
Hoses IncludedNo
Interior LightNo

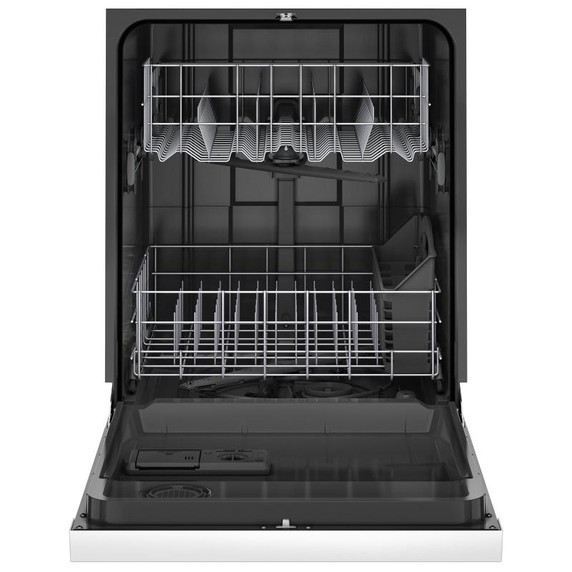

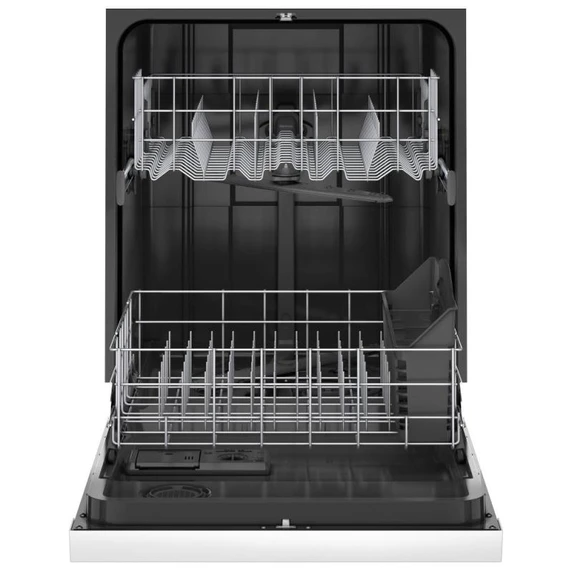

Number Of Racks2
Rack MaterialPVC
Tub MaterialPlastic
Tub StyleBuilt-in Tall Tub 24in.
Wash SystemFilter
Wash System TypeRemovable Filter
Water FiltrationYes
Electrical
Amps8.1000004
Power Cord IncludedNo
Volts120
Exterior
Handle TypePocket Handle
Toe Panel ColorWhite
Features
DispensersDetergent and Rinse Aid
Number Of Wash Levels4
Rinse Aid Dispenser Level IndicatorYes
Lower Rack
Cushion Tip TinesNo
Fold Down TinesNo
GlidesWheels
StyleStraight
Utility BasketNo
Options
Dishwasher Option SelectionsHeated Dry; Hi Temp Wash
Silverware Basket
CoversNo
LocationLower Rack - Right Side
TypeFull Length Non Splitable
Third Level Rack
GlidesN/A
Carton Depth26.38"
Carton Height35.04"
Carton Width24.25"
Depth Closed Excluding Handles24.5"
Depth Closed Including Handles24.5"
Depth With Door Open 90 Degree49.5"

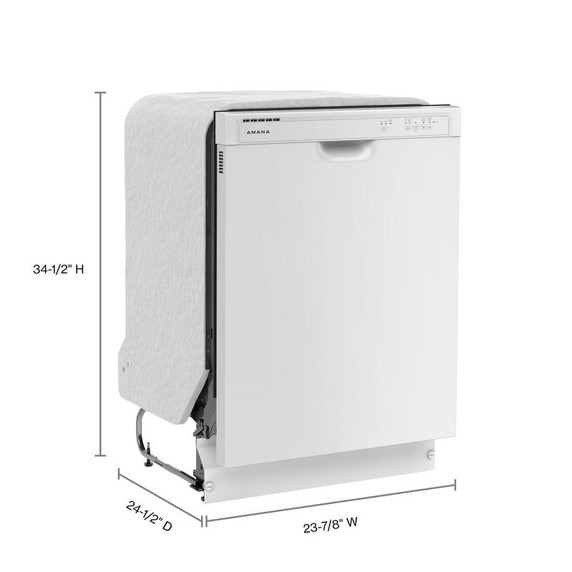

Depth24.5"
Gross Weight75.0 lbs.
Height33.5"
Maximum Height34.5"
Minimum Height33.5"
Net Weight65.0 lbs.
Width23.88"
